Repetitive impact vibration tables generate multi-axis vibrations using one or more pneumatic hammers (also known as impactors) that strike the bottom of the vibration table on which a product is secured.
Thermotron’s repetitive shock vibration test systems are specifically designed for very aggressive temperature change rates and high levels of multi-axis repetitive shock vibration.
Repetitive shaking tables can be used as stand-alone units or combined with an AGREE or AST chamber for HALT/HASS testing. The repetitive shock vibration system incorporates many unique features designed to meet a wide range of vibration testing and screening applications for many industries. The basic system uses multi-zone control. This patented feature tests products more evenly and more effectively. As a result, you get increased product reliability, reduced warranty and recall risks, and better utilized company resources.
New standards
- Minimal footprint> Better use of space
- Multipurpose room> Heating and Cooling in both compartments
- Set-Point Margins> Pre-Cooling and Pre-Heating
- High performance> According to IEC, MIL-STD, JEDEC, IPC, etc. standards.
- Control System> Programmer with 12” colour touch screen
- Efficient Ventilation> Maximum uniformity

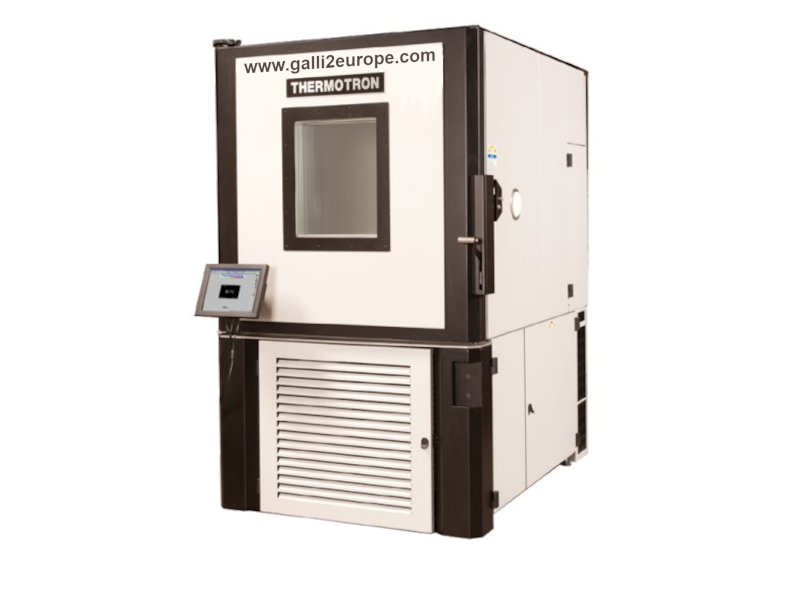

Thoroughly testing your products before consumer use is critical to the success of your business. Thermotron’s SE Series chambers expose products to a variety of temperatures and humidity levels, providing a comprehensive and complete way to improve product reliability. The SE Series chambers provide accurate and reliable test results. With more standard features and improved performance capabilities than comparable chambers on the market, the SE Series chambers enhance products through dynamic testing solutions.
Inside the work area
• 4” thick door and 4.5” thick walls
The chamber is well insulated and remains cool to the touch, protecting the user.
• Advanced air deflector design
Forces air directly onto the product for better temperature change rates.
• Electronic humidity sensor
Eliminates the need for thermocouple wicks, producing more repeatable and reliable moisture tests with less downtime.
• Interior lights
Illuminates the work area during a test and while the door is open.
• Product temperature control thermocouple (PTC)
Attaches to the product under test for control and monitoring
• ThermAlarm®
Prevents the temperature from exceeding user-defined limits.
Serial Communications Panel
Stay connected with the serial
Communications panel, with connections for computers, Internet, Ethernet and USB, all powering the 8800 controller. The Serial Communications panel provides the ability to securely export and transfer sensitive test data, including graphs and reports. The serial communications panel includes:
• 2 USB ports
• Ethernet
• RS-232
Optional Features
A silent package
Sound absorbing material inside the base of the chamber incorporated to minimize noise levels.
Additional access doors
Allows cables to connect to a product inside the chamber and to connect to external monitoring equipment. A plug is provided to seal the port.
Cable notch
A recess in the door frame that allows easy passage of cables from the product under test to outside the chamber.
Data Acquisition Panel (DAQ)
Collects and monitors product data during testing.
Lock
Prevents the chamber door from opening during a test.
Emergency stop button
Turn off the room immediately in case of emergency.
Extended temperature range
Increase chamber performance up to 232°C or below -70°C, with the help of LN₂.
Extended Warranty
Available on parts and/or labor for your equipment.
Extra access doors
Choose between 2”, 4” and 6” doors to place on the side wall of the room.
Extra heat
Accelerates the heating capabilities of the chamber to improve the rates of change of product and air temperature.
Glove doors
Allows users to safely manage test products within the workspace.
Internal glass doors
Allows product movement without releasing conditioned air.
Liquid nitrogen (LN₂) boost
Allows for faster temperature drops and provides backup cooling in the unlikely event of a mechanical refrigeration failure.
Liquid nitrogen (LN₂) only chamber
Available on select models only. Bypasses mechanical refrigeration for simplified LN₂-only operation.
Oxygen monitor
Analyzes oxygen levels in the environment outside the chamber to protect users.
Preventive maintenance and calibration agreements
Keeps equipment in tip-top condition, minimizing chamber downtime.
Product dew point control
Prevents condensation by keeping the product at a temperature higher than the dew point of the surrounding air.
Purge: Dry air and nitrogen gas (NG₂)
Minimizes humidity in the work area.
Reinforced floors
Supports heavy loads of products.
Remote air-cooled condenser
It transfers heat from the chamber to the outside of the structure.
Remote air conditioning fan
Allows the chamber to air condition remote enclosures using a fan in the chamber ceiling.
Shelves
Increases product load capacity, allowing more effective use of testing space.
The universal port
Located in the side wall of a SE series chamber, it diversifies the use of the test laboratory.
IMPROVED PERFORMANCE
Air Baffle
Optimizing the airflow in the work area is essential for a successful test. Repeat tests and maintain consistent, accurate results with Thermotron’s innovative air deflector. It is designed to evenly and forcefully distribute air directly onto the product,* ensuring that the entire product is conditioned. The superior airflow provided by the air deflector improves product temperature change rates, narrows temperature gradients and improves uniformity throughout the chamber working space.
Product temperature control
Product Temperature Control (PTC) is a software and thermocouple system used to increase product temperature ramp rates with user-defined temperature offsets. This feature is configured and controlled via the 8800 controller. During conventional environmental testing, the workspace air temperature setpoint is reached before the product temperature reaches it. The product temperature will lag behind and approach the air temperature at an exponentially decreasing rate. The PTC reduces product ramp times by up to 50% by overdriving the chamber air conditioning system until the product temperature reaches the desired setpoint. In the example above, the workspace air temperature reaches 65°C and holds until the desired product temperature setpoint of 55°C is reached. As the product temperature approaches the setpoint, the air temperature converges with the product temperature, so both are at 55°C. This ensures accurate test results for the product during environmental testing. PTC works for both heating and cooling.
Energy Saving (optional)
This innovative feature increases cooling performance and reduces chamber energy consumption. Power Saver Plus mode works with the 8800 controller to determine whether to operate in single-stage or cascade mode, based on the temperature setpoint, humidity mode, and cooling throttle. Single-stage refrigeration systems operate faster in the higher temperature ranges, while cascade refrigeration systems operate faster in the lower temperature ranges. Power Saver Plus combines the advantages of both systems. It uses sophisticated control logic to allow switching between systems, thereby increasing cooling ramp times by up to 30%, all while reducing energy consumption.
Heating/Cooling Boost (optional)
Additional features enhance the cooling and heating performance of the chamber. LN₂ Boost and CO₂ Boost Liquid nitrogen (LN₂) boost and carbon dioxide (CO₂) boost are cooling injection systems that enable faster heat removal and dissipation from the product under test. Extra Heat This additional feature accelerates the heating capabilities of the chamber to improve the rates of change of air and product temperature.
8800 CONTROLLER
Intuitive, robust, safe
The exclusive Thermotron 8800 Windows®-based controller with 12-inch color touchscreen makes chamber operation and data collection easy and reliable. Quick navigation buttons provide shortcuts to user-selected screens.
The 8800 controller is standard on all SE Series cameras. With this controller, you get:
• Multi-level password-based security system to protect data
• Test data that can be downloaded in spreadsheet formats
• An activity register: records and maintains more than 15 years of chamber history
• Product temperature control to improve product change rates by overcompensating air temperature to control product temperature
• System Monitor to detect excessive refrigeration pressures and temperatures and alert users when problems occur
• Product dew point control to prevent condensation by keeping the product at a higher temperature than the dew point of the surrounding air (optional)
• ThermoTrak II™ for connecting up to 32 controllers to one PC (optional)
MODULAR HUMIDITY SYSTEM
Temperature-Humidity
SE Series chamber models include a patented, modular, full-range humidity system. Precise uniformity and tight control characterize the high-performance specifications of this humidity system. With excellent low humidity accuracy, the electronic humidity sensor (located in the work area) eliminates the need for thermocouple wicks and float tanks. A steam generator achieves high humidity volumes with consistent water vapor levels and more repeatable test results. The humidification system can be configured with a direct feed plant connection or a self-contained refillable water tank. If the water tank is used, the wet water purification and recirculation system is recommended to keep water within the working limits of the chamber. A demineralizer cartridge viewing window allows users to see the cartridge without opening the doors. The low humidity option incorporates dry air purge and a bubbler humidity system to control humidity to extremely low dew points. This eliminates the two problems associated with adding hot steam to a cold environment: heat that must be removed from the system and oscillation of the steam generator, which negatively impact test results. Humidity test numbers can be viewed, monitored and controlled using the 8800 controller. If you have a temperature-only chamber, the modular humidity system can be added as a retrofit in the field.
UNIVERSAL DOOR
The patented Universal Door can be installed in the side wall of the SE Series chambers, expanding the capabilities of the chamber by diversifying equipment usage, increasing laboratory productivity, and reducing capital investment costs. The Universal Door interfaces with interchangeable modules and accessories that feature different stress testing and simulation techniques, allowing the chamber to serve multiple purposes. With the Universal Door, a temperature chamber can become a HALT chamber, a thermal shock chamber, or a remote air conditioner without the need to purchase an additional chamber. The height of the Universal Door, modules, and accessories is consistent across all SE Series chamber models. The stainless steel door reduces moisture migration and heat loss. A complete seal The structural cap fills the portal with a pressurized fit when the door is not in use
Thermotron’s AGREE test chambers offer the flexibility to adapt to changing environmental testing requirements. Chambers are available in temperature-only or temperature and humidity configurations. Rapid heat change rates from 5°C up to 30°C are available. These environmental chambers can become vibration chambers when seamlessly integrated with a Thermotron electrodynamic shaker or repetitive shock vibration table.
This diversifies the usefulness of the chamber because it can be used as a stand-alone temperature environmental chamber or for combined environmental testing. Thermotron AGREE chambers were originally designed for the defense and aerospace industries to perform temperature, humidity and vibration testing compliant with MIL-STD 781 and 883. Since then, AGREE vibration chambers have been adapted to perform reliability, qualification and environmental stress screening (ESS) for a wide range of industries, including electronics, aerospace, automotive and telecommunications.
- Environmental Simulation Chambers
Info
Galli offers Climatic Chambers and Cells from a few liters of capacity to large volumes. In accessible Walk-in chambers, the temperature can vary from -70°C to +180°C, or from -150°C to +300°C for special versions. The humidification system we manage includes both direct and indirect systems, without aerosol. Radiation, dust, rain, salt fog and cyclic tests are some of the possible specialties. Main applications: Automotive, electrical, semiconductor, construction, chemical, pharmaceutical, biotechnology, aeronautics and defense, solar energy, home automation. A Galli Climatic Chamber allows you to carry out tests and trials with simple and complex thermo-climatic profiles. Managing the recording of the trend of environmental parameters; such as temperature and relative humidity. At Galli we offer solutions that combine the climatic cell with recorders compliant with both the ICH Pharmacopoeia Regulations with inviolable data according to CFR,11 safety protocols. Furthermore, a Thermostatic Chamber or a Cell can be designed and built in compliance with the regulations of other technologically advanced sectors; such as Aeronautics, Space, Military and Electronics. All Galli Thermostatic and Climatic Chambers can be supplied with an official ACCREDIA calibration report (ex SIT) or with an original Factory report; always with international ACCREDIA and LAT references.
Galli Climatic Cells are designed and built to be used both for autonomous tests and for tests in combination with other types of tests.
In fact, climatic tests are required for mechanical, electrical and electronic, pneumatic, hydraulic, light tests. Endurance and fatigue tests can be integrated both from a mechanical, interface, and automation, software point of view. Together with customers, Galli always develops new ideas and finds new solutions for Environmental Simulation tests, single or combined.
Fratelli GALLI is well aware of the needs of laboratories and researchers, who must recreate particular thermo-climatic environments for testing and trials of different types of materials and products.
We offer endless possibilities for customizing our products and equipment, from sizes, shapes, accesses, doors, windows, loops, to temperature and relative humidity, to provide a product of concrete, real and unique value.
We design and manufacture your customized test chamber and other laboratory equipment with the highest standards of workmanship, flexibility and reliability to meet every type of request.
Working in daily contact with technicians and researchers allows us to create and manufacture a final product that complies with the different testing and trial needs of a modern laboratory.
Fratelli Galli offers customized environmental test chambers with volumes as small as 15 liters, up to over 100 m3, capable of simulating and reproducing extreme thermoclimatic environmental conditions with accurate temperature ranges and humidity ranges.
We are able to create special conditions combined with light irradiation for the cultivation of plants, for germination, or special lights for the growth and study of insects.
In all our projects we choose the best available technology, for a reliable and cutting-edge test .
Fratelli Galli, thanks to its experience, is available to configure the customized environmental chamber , ideal for the specific laboratory test, up to arriving at your own real special environments.
Fratelli Galli is the ideal partner for consultancy , design , production and assistance of the customized environmental chamber together with the customer.
Since 1960, Fratelli Galli has developed significant know-how in the production of customized laboratory equipment, thanks to an innovative and strongly customer-oriented approach.
Each Galli original environmental test chamber is an indispensable tool to meet various testing and testing requirements according to international norms and standards.
Fratelli Galli is able to customize climatic chambers based on different parameters, such as:
- Internal Useful Dimensions or External Dimensions
- Internal Test and Test Volume = Liters, m3
- Range, Temperature range = °C and °F
- Range, Relative humidity range = RH% RH%
- Irradiance , Luminosity = Lux, µmole
- Vacuum , Depression, Altitude = mbar, Tor, Atmospheres
- Gas , Fluids = Nitrogen, Argon, Oxygen, CO2
- Vibration = G, rpm, cpm
- Mechanical devices = Dynamometers, Strain gauges, Masses
Customizing a climatic chamber, creating equipment with customized temperature and humidity are specialties of Fratelli Galli.
What is a climate chamber?
A climatic chamber, also called an environmental chamber or environmental test chamber or environmental simulation chamber, is an apparatus, an instrument used to test the effects of certain environmental conditions on materials, biological elements, industrial products, pharmaceuticals, devices and electronic components. Fratelli Galli designs and builds a wide range of climatic chambers able to satisfy every need.
So what is a climate chamber?
A climatic chamber is a volume that can be a few litres, or a space of many metres3, a space within which the environmental conditions to which machinery, materials, devices or components might be exposed are artificially reproduced.
For example, Galli offers chambers from 30L to 3000L for classic tests of products arranged on shelves or supports, and then move on to the GWALKIN models, which are real compartments, accessible and walkable rooms where it is possible to arrange shelves or position large artefacts, enter with pallet trucks or forklifts = Accessible climatic chamber.
What is a climate chamber used for?
Climatic chambers are used to test and in some cases accelerate the effects of exposure to the standard environment or the extreme environment of a product or artifact. For example, Galli Climatic Chambers can be used for trials and tests to measure the environmental effects on material specimens, to prepare specimens for further physical or chemical tests later,
to simulate specific or extreme environmental conditions and to conduct tests on samples. Not only that, some Galli climatic chambers are used for Emissions tests, to understand which substances are released by various components and products and must respect certain limits.
What is the relationship between the tests and climatic chamber tests and the products?
The main function of an environmental test chamber is to test the behavior of the products we use daily, in extreme climatic conditions; evaluate the limits, predict the defects in order to guarantee and improve the quality of the product. For example, tests and trials of the influence of temperature and humidity on the properties of fabrics, packaging, building materials, plastics, composites, adhesives, metals, electronic components, microprocessors, … Ageing and storage of building material samples, incubation of cells or fungal spores on plants in humid conditions, drying tests and trials, Accelerated ageing, Stability tests of drugs, research and development tests, shelf line studies in the Food Industry.
How does a climatic test chamber work?
The Galli climatic chamber is designed to allow environmental simulation and is therefore able to manage thermo-climatic situations with positive and negative temperature control, the climatic chambers also manage relative humidity and dehumidification, some models are able to simulate exposure to daylight, UV light and Xenon light, or simulate accelerated aging with spray or exposure to gas. The operation of the climatic chamber is normally managed by a microprocessor or PLC which, by means of actuators, commands and controls all the relevant parts, such as refrigeration compressors, liquid nitrogen (LN2) or liquid carbon dioxide (CO2), electrical resistances, electronic valves, humidifiers, lights, gas, … A control panel and remote control on PC, LAN, Web allows the operator to control the climatic cell, allowing the setting of continuous duration tests and the programming of complex thermodynamic cycles and repetitions.
Can the climatic chamber be combined with other types of tests?
Climatic chambers, in addition to environmental simulation of temperature, humidity, light, radiation, can be combined with mechanical stress tests such as Electrodynamic Vibration or Pneumatic Random Vibration tests, Extreme Thermal Shock tests by switching from extremely cold to extremely hot conditions in an extremely short period of time, Altitude tests. In addition to standard climatic chambers, Fratelli Galli offers a design service that is able to develop complex tests where there are different combinations of tests in a single laboratory instrument.
How to set up a climate chamber in the laboratory
The installation of a climatic chamber in the laboratory requires some precautions and Fratelli Galli is available to guide you in the installation.
First of all, check that there is enough space for its positioning, leaving some space for ventilation.
The installation location should be with an ambient temperature between 15°C and 30°C and relative humidity not exceeding 85%
The environment must be well ventilated and free from strong magnetic fields, vibrations or fuels.
A well-made electrical system with a capacity suitable to support the new climate cell and efficient earthing is essential.
Water supply, the water needed to control the relative humidity is another factor that must be taken into consideration, the Galli climatic chamber offers the possibility of being connected directly or of taking the water needed for correct operation from a tank.
Do I have to install the climate chamber myself?
Both before and after the purchase, the customer is not left alone
Fratelli Galli is always available to evaluate the installation location of the climatic chamber together with the customer and to carry out the installation and staff training service.
We are also available to carry out IQ and OQ protocols, with the release of documents.
Ordinary and extraordinary maintenance service with personnel in possession of qualifications and FGAS license.
Monitoring, mapping and calibration activities of climatic chambers with Accredia reference.
What if I need to move the climate chamber?
Often situations change and you have to move or relocate a laboratory, Fratelli Galli is available to help you during these steps in order to guarantee the value of your investment and always have a tool, a functioning and efficient climatic chamber.
What do I need to do to repair a climate chamber?
